Model: ETS009

This seat will exceed your comfort expectations

( Free Headrest )

Armrests Optional (ETSAR01)

ETS009SC Canvas Seat Covers Available
Normally $227. With Seat Purchase $197
Call For Discount

1. Horizontal adjustment: operating elements left, stroke

150mm(15mm×10)

2. Height / rake adjustment: operating elements left, in fine

increments up to 65mm，rake adjustable , ±14°;

3. Weight adjustment: automated up to 130kg(40 to 130Kg), air

pressure 0.3～0.7Mpa(air pressure of supply 0.7～0.9Mpa)

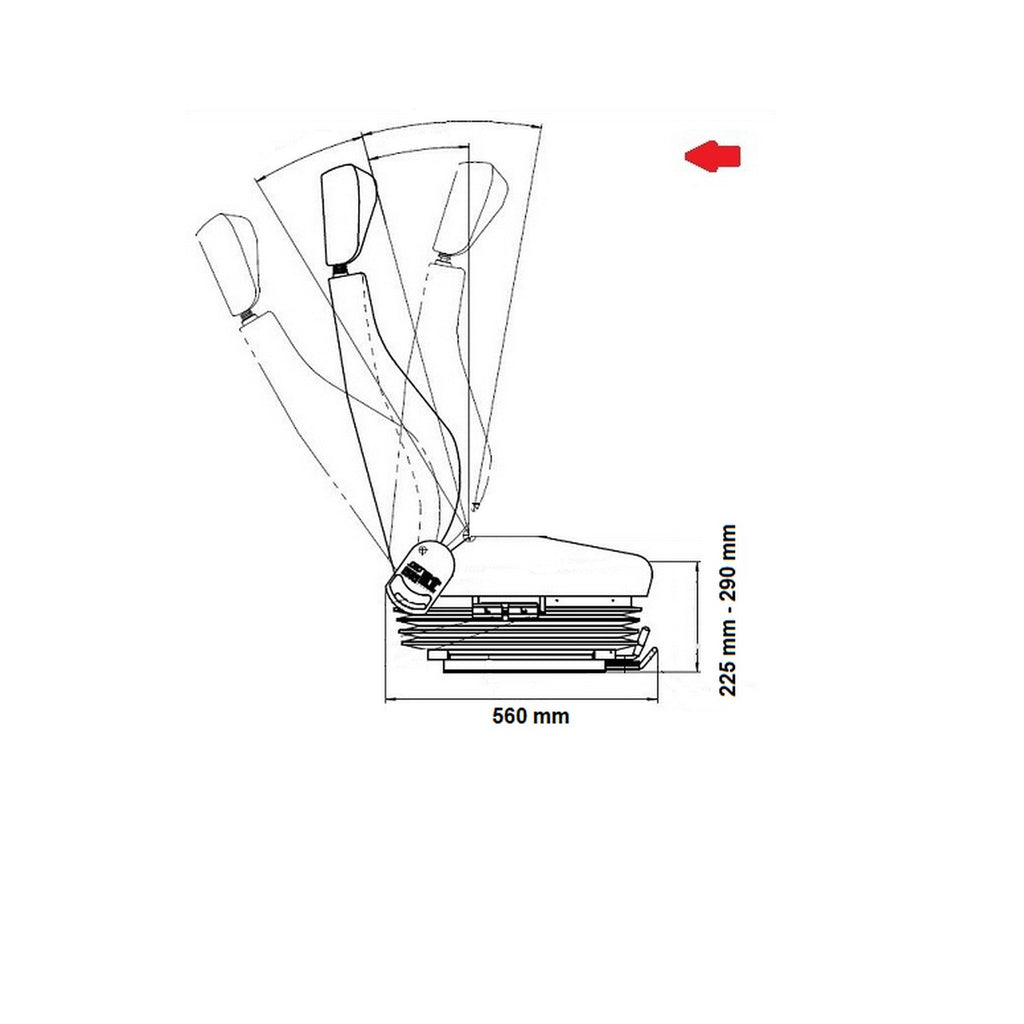

4. Backrest adjustment: Adjust range 80° ＋ 41°

5. Head rest adjustment : stroke 75mm(25mm×3)

6. Vertical locking adjustment

7. Pneumatic suspension function: stroke ±30mm。

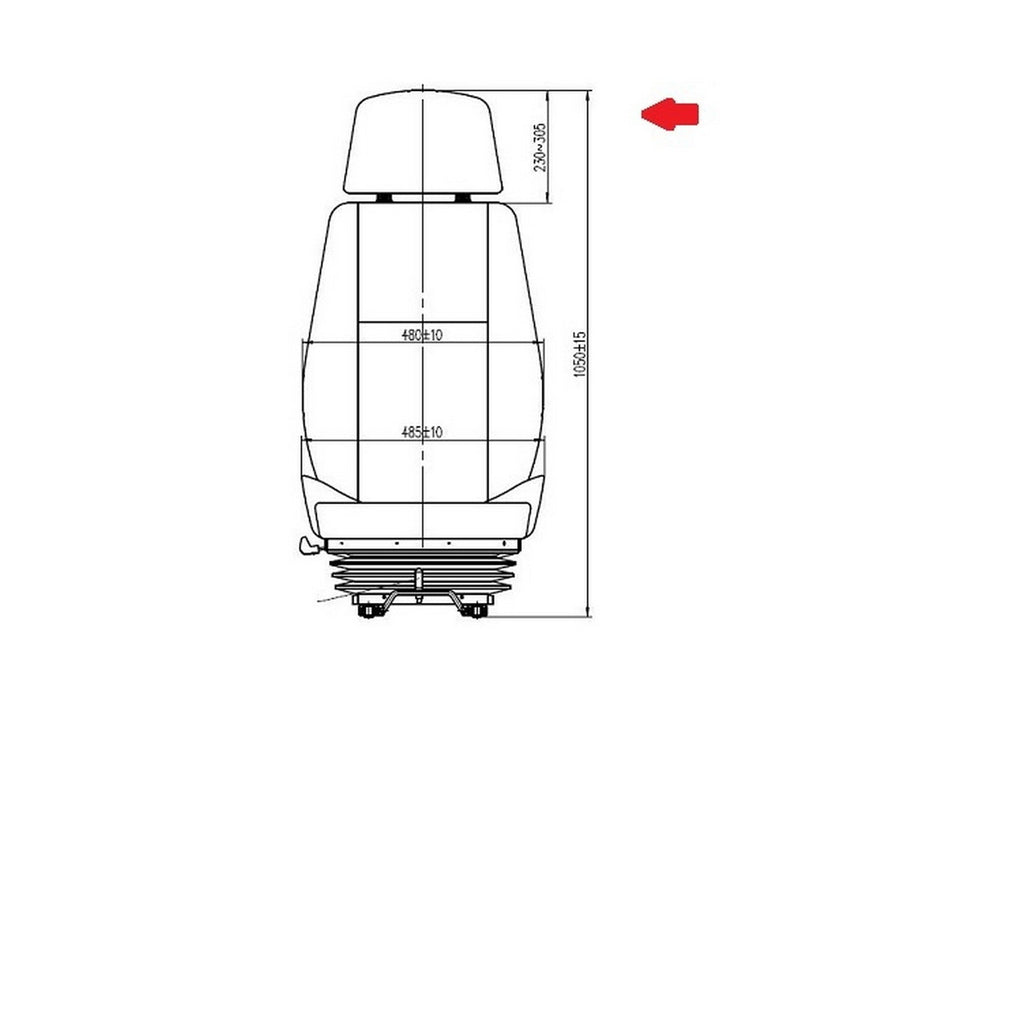

8. Seat size（length×height×width） 550×1050×485mm

9. Seat cushion height（work state）235mm ; seat cushion width

485mm ;seat cushion depth 465

10. Backrest height 630mm ; backrest width 480mm

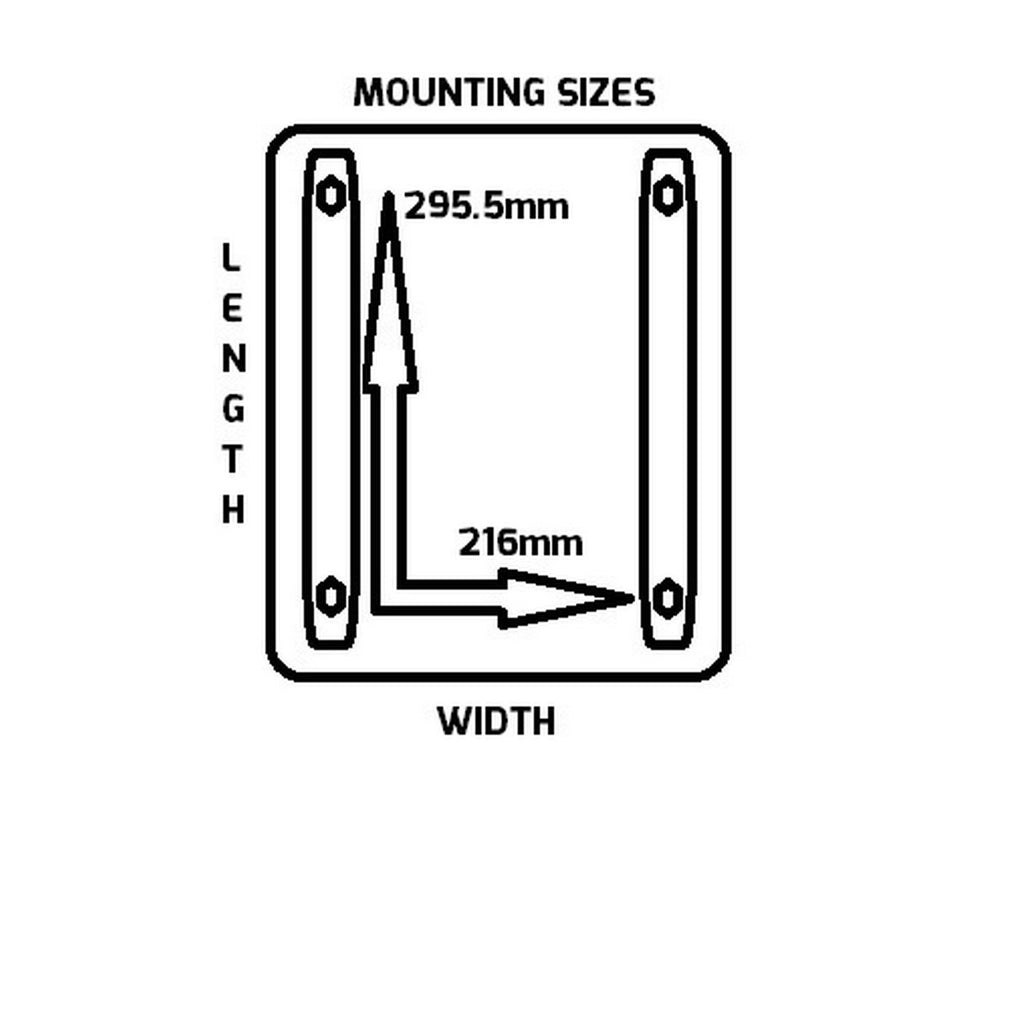

11. Connect size（L/R×F/B）216×295.5mm

All Seats come with Sliding Rails Attached

Can use ETSRB01 Seat Riser Box

Payment: Pay Pal on check-out or c/card over the phone or request invoice for EFT.

1 Year Warranty

Adapters Available

Ph. 07 3161 3327
